Revit ADA Floor Plan Clearances Package
This package includes 35+ family variations for door, appliance, fixture, and turning clearances. Unlike 2D components, they are visible in any plan view assigned to the same level but conveniently hidden in 3D views and can easily be turned off using visibility graphics or view templates.
Think of all the time you’ll save from having to create these hatch patterns yourself!
Think of all the time you’ll save from having to create these hatch patterns yourself!
Making sure your buildings are ADA-compliant for accessibility is extremely important, but can be confusing and take a lot of time. Use these 3D parametric families to help you save time and easily check your work.

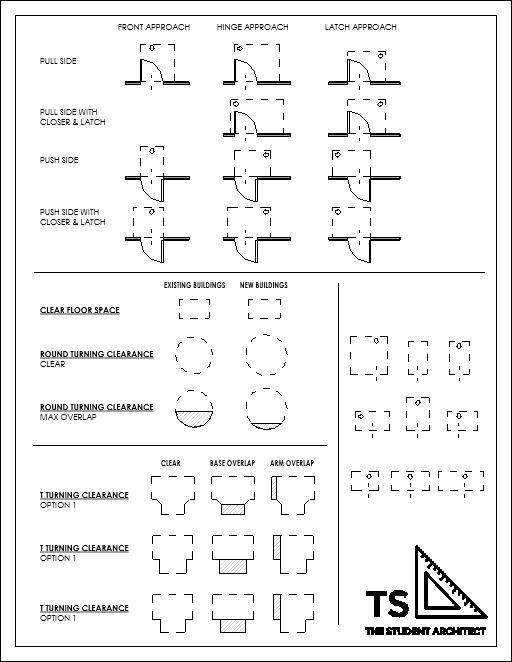

List of components includes:
- Door clearances
- Turning clearances
- Fixture clearances
- Appliance clearances
Included in the package:
- 35+ custom Revit families/types
- PDF showing each family
- Bonus resources
You will need Revit 2023 or later to use these components.
Get the
Revit ADA Floor Plan Clearances Package
for $15
Disclaimers:
All sales are final. There are no refunds on digital products.
You will need Revit 2023 or later to use these families.
Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.
Permitted Uses:
All sales are final. There are no refunds on digital products.
You will need Revit 2023 or later to use these families.
Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.
Permitted Uses:
- Use in unlimited personal and professional projects.
- Modify or adapt the files to suit specific project requirements.
- Reselling, sharing, or redistributing the original or modified files, including the files in any asset library, template collection, or product for resale or free distribution.
- Claiming the original or modified files as your own original work.
